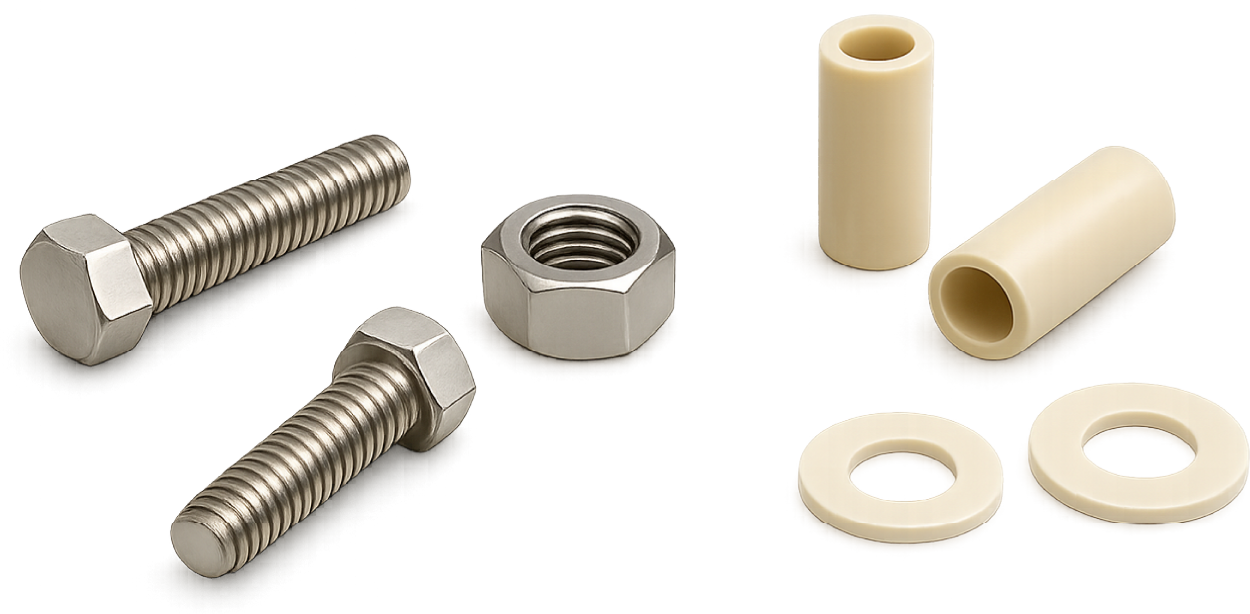

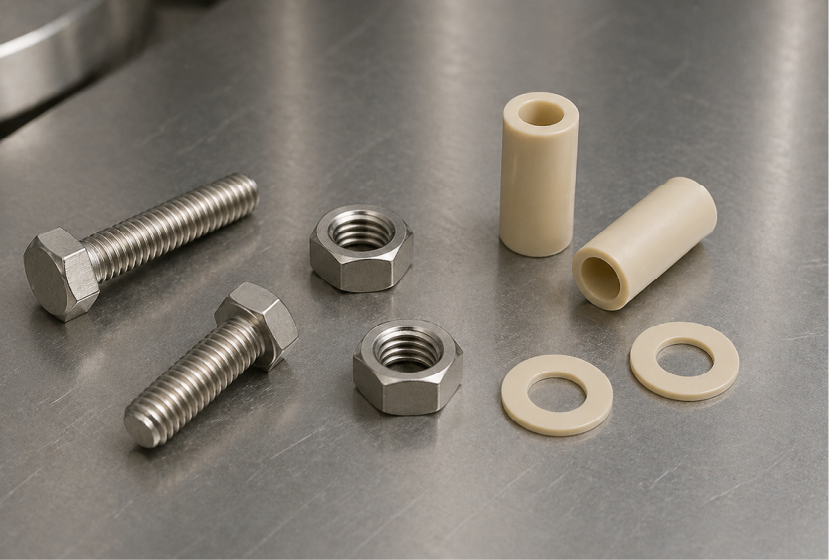

Bolt / Nut / Sleeve / Washer
볼트 / 너트 / 슬리브 / 와셔
플랜지 인슐레이션 시스템에서 체결 및 절연을 위해 사용되는 핵심 구성 요소로,
구조적 안정성과 하중 분산을 유지하며 전기적 절연 성능과 밀봉 신뢰성을 확보합니다.
Essential fastening components used in flange insulation systems to provide
secure assembly and maintain electrical isolation between connected parts.
They ensure proper load distribution, structural stability, and reliable sealing
performance in various industrial applications.
| Materials | Insulation Resistance (Ω) | Max. Temp. (℃) | Thickness | |
|---|---|---|---|---|
| Insulation | Glass Reinforced EPOXY (G-10, G-11) | Over 2.0 x 1013 | 180 | 0.8T ~ 1.0T |
| Sleeve | Phenolic | 2.0 x 108 | 180 | 0.8T ~ 1.0T |
| PTFE | Over 2.0 x 1013 | 100 | 0.8T ~ 1.0T | |
| Mica | 9.9 x 1010 | 1000 | 0.8T ~ 1.0T | |
| Insulation | Glass Reinforced EPOXY (G-10, G-11) | Over 2.0 x 1013 | 150 | 3.0T |
| Washer | Phenolic | 2.0 x 108 | 180 | 3.0T |
| - | 9.9 x 1010 | 1000 | 3.0T | |
| Steel | Carbon Steel | N / A | N / A | 3.0T ~ 5.0T |
| Washer | Stainless Steel | N / A | N / A | 3.0T ~ 5.0T |
| Nut | A194 Gr.2H (ASTM) | N / A | N / A | - |
| (Heavy Hex Nut) | A194 Gr.8 (ASTM) | N / A | N / A | - |
| A194 Gr.8M (ASTM) | N / A | N / A | - | |
| Bolt | A193 Gr.B7 (ASTM) | N / A | N / A | - |
| (Stud Bolt) | A193 Gr.B8 (ASTM) | N / A | N / A | - |
| A193 Gr.B8M (ASTM) | N / A | N / A | - | |
* Insulation Resistance(Ω) ASTM D257-07 : Usage Voltage: 1000V, Capacity of Tester: 2.0 x 1013Ω
* Steel Washer, Nut, Bolt : Special Material can be available as costomer’s requirements
