Non-metallic sealing meterials
INSULATION SETS
High-Performance Ebilon Sheet & Gasket for Industrial Sealing
에빌론 소재 기반의 고성능 시트 및 가스켓으로,
내화학성·내열성이 뛰어나 다양한 산업 환경에서도
안정적인 밀봉 성능을 제공

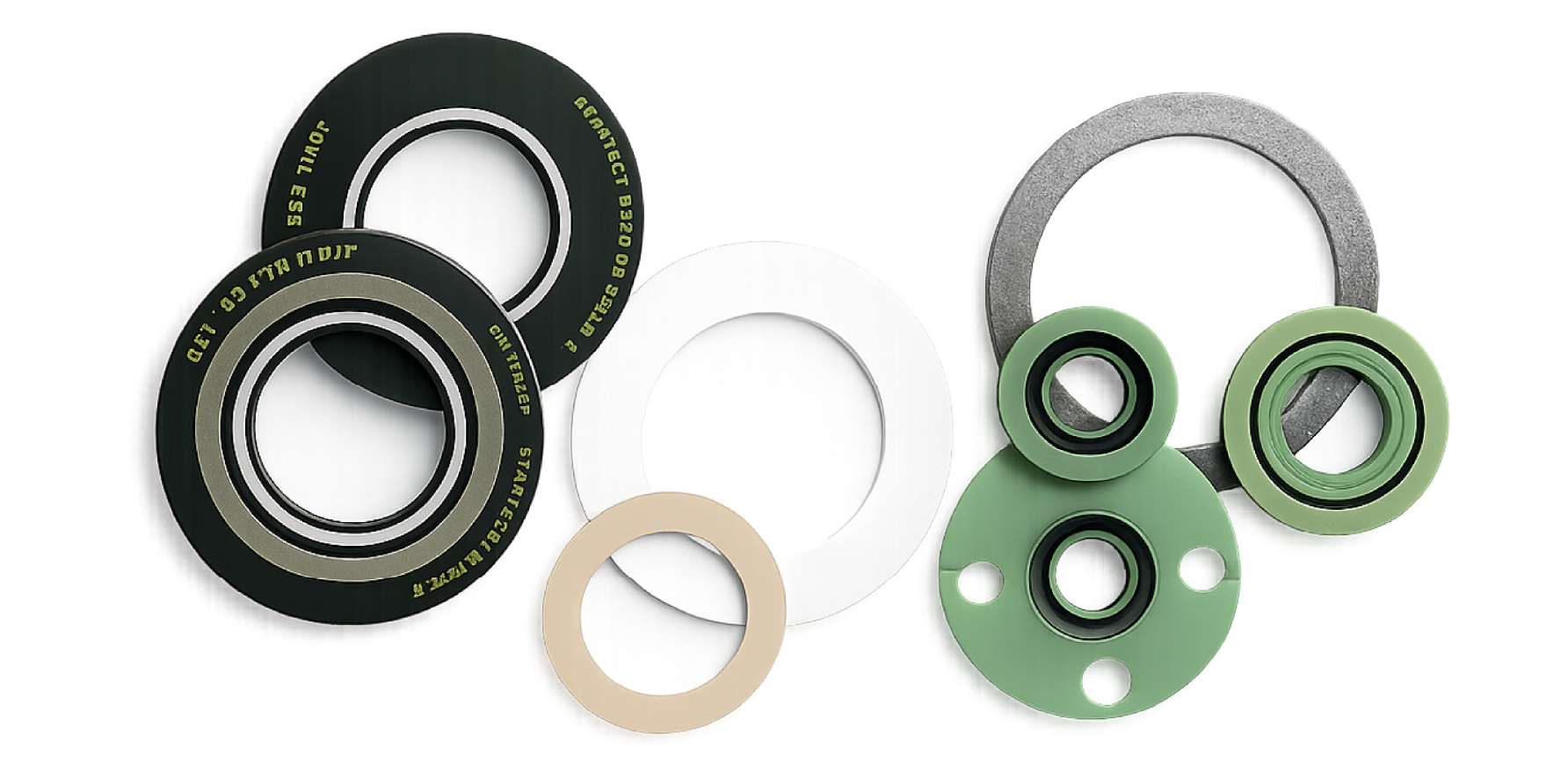

GASKET
가스켓

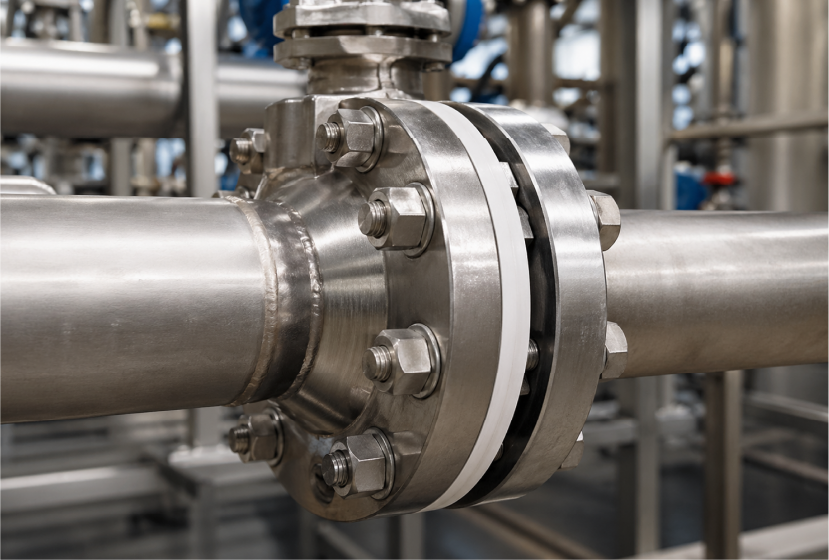

다양한 산업 환경에서 플랜지 연결부의 누설을 방지하고
안정적인 밀봉 성능을 제공하는 핵심 씰링 솔루션입니다.
A critical sealing solution that ensures leak-tight
performance between flange connections under
various operating conditions.
| Materials | Max. Temp. (℃) | Pressure Class (lb) | Insulation Resistance (Ω) |
|---|---|---|---|
| PTFE Solid Gasket | -100 ~ 100 | 150 | Over 2.0 x 1013 |
| Reinforced PTFE Gasket | -200 ~ 200 | 300 | -1.0 x 1011 |
| Neoprene Faced PhenolcGasket | -30 ~ 120 | 150 RUBBER | CR 1.0 x 1011 |
| Glass Reinforced Epoxy Plate | -40 ~ 150 | 600 RUBBER | EPDM 2.0 x 1013 |
| Gasket with Rubber O-Ring | - | - | |
| Glass Reinforced Phenolic Plate | -40~150 | 600 RUBBER | VITON 9.7 x 109 |
| Gasket with Rubber O-Ring | - | - | |
| Glass Reinforced Epoxy Plate | -16 ~ 150 | 600 RUBBER | NBR 1.3 x 1011 |
| Gasket with Rubber O-Ring | - | - | - |
| EQ: PIKOTEK PGE TYPE | - | - | - |
| Epoxy Faced Metal Plate with | 150 | 150 | - |
| Rubber O-Ring | - | - | - |
| EQ: PIKOTEK VCS TYPE | - | - | - |
| Epoxy Faced Metal Plate with | 1000 | 2500 | Over 2.0 x 1013 |
| PTFE Seal EQ: PIKOTEK VCS Type | - | - | - |
| KAMMPROFILE Gasket with MICA | 2500 | 2500 | 9.9 x 1010 |
* Insulation Resistance(Ω) ASTM D257-07 : Usage Voltage: 1000V, Capacity of Tester: 2.0 x 10130
* Gasket type confirmed by customer.
* For Specific size & application recommendations consult JEIL.
* PTFE Gasket : Not suitable for FR type.
