Non-metallic sealing meterials
RUBBER GASKETS
Flexible Rubber Gasket for Reliable Industrial Sealing
산업용 설비에 적용되는 고무 가스켓으로,
우수한 밀봉 성능과 안정적인 내구성을 제공

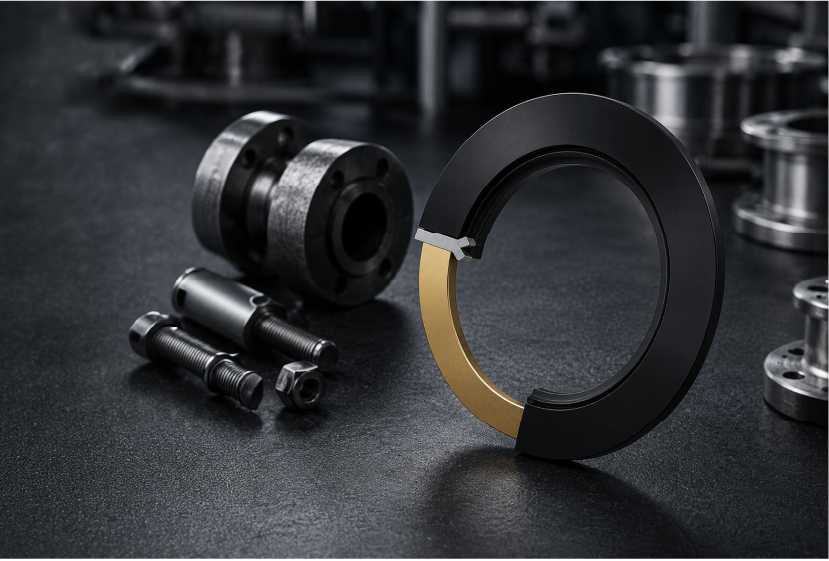

Steel Rubber Gasket
고무 가스켓

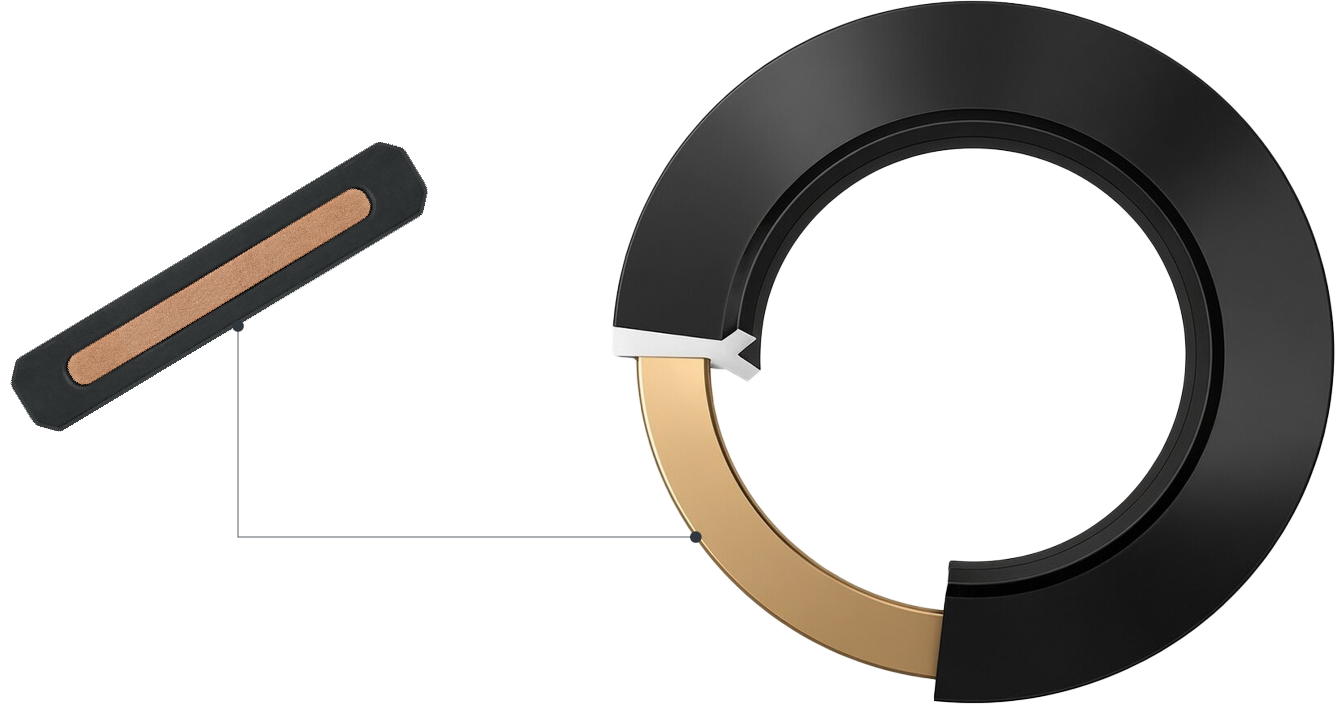

Steel Rubber Gasket은 금속 코어와 고무 씰링부를 결합한 복합 구조로,
우수한 강도와 탄성을 동시에 제공합니다. 금속 보강재가 가스켓의 변형을 최소화하고
안정적인 체결을 유지하며, 고무 재질은 우수한 밀봉 성능을 제공하여 누설을 효과적으로
방지합니다. 배관, 플랜지 및 각종 산업 설비에 적용 가능하며, 사용 조건에 따라 다양한
엘라스토머 소재를 적용하여 화학적 내성과 온도 적합성을 확보할 수 있습니다
Steel Rubber Gaskets combine a metal core with an elastomer sealing
element, providing both structural strength and sealing flexibility.
The metal reinforcement minimizes deformation and ensures stable
gasket seating, while the rubber sealing surface delivers excellent
leak-tight performance. Suitable for piping systems, flanges, and
various industrial equipment, they are available with different
elastomer materials to meet specific chemical compatibility
and temperature requirements.
Application
적용 분야
Material Summary
소재별 요약
| Properties | NR | NBR | CR (NEOPRENE) |
EPDM | SL | SBR | FKM(VITON) | BUTYL(IIR) |
|---|---|---|---|---|---|---|---|---|
| Hardness(Shore A) | 70±5 | 60±5 | 60±5 | 75±5 | 65±5 | 60±5 | 75±5 | 60±5 |
| Tensile Strength(kgf/cm²) | min.70 | min.80 | min.60 | min.152 | min.80 | min.30 | min.93 | min.70 |
| Elongation(%) | min.150 | min.300 | min.350 | min.240 | min.100 | min.150 | min.220 | min.350 |
| Rebound Resilience | ◎ | ○ | ◎ | ○ | ◎ | ○ | △ | △ |
| Service Temp.(℃) | -20~100 | -30~120 | -30~120 | -40~150 | -60~200 | -20~100 | -20~200 | -40~120 |
| Wear Resistance | ○ | ◎ | ○ | △ | △ | ◎ | ○ | △ |
| Flexibility | ◎ | ○ | ○ | ○ | △ | ○ | ○ | ◎ |
| Ozone Resistance | ✕ | ✕ | ○ | ◎ | ◎ | ✕ | ◎ | ◎ |
| Gas permeability | △ | ○ | ○ | △ | ✕ | △ | ○ | ◎ |
| Flame Resistance of Salt Tolerance | ✕ | ✕ | ○ | ✕ | △ | ✕ | ◎ | ✕ |
| Lubricant | ✕ | ◎ | ○ | ✕ | ○ | ✕ | ◎ | ✕ |
| Gasoline | ✕ | ○ | △ | ✕ | ✕ | ✕ | ◎ | ✕ |
| Aliphatic Hydrocarbon | ✕ | ◎ | ○ | ✕ | ✕ | ✕ | ◎ | ✕ |
| Hydrocarbon | ✕ | ✕ | ✕ | ✕ | ✕ | ✕ | ○ | ✕ |
| Aromatic hydrocarbon | ✕ | ✕ | ✕ | ✕ | ✕ | ✕ | ◎ | ✕ |
| Alcohol | ◎ | ◎ | ◎ | ◎ | △ | ◎ | ○ | ◎ |
| Ketone | ○ | ○ | ◎ | ◎ | ○ | ○ | △ | ◎ |
| Water | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
| Weak Acid | ○ | ○ | ○ | ◎ | ○ | ○ | ◎ | ◎ |
| Strong Acid | ✕ | ✕ | △ | ○ | ✕ | ✕ | ◎ | ○ |
| Alkali | ○ | ○ | ◎ | ◎ | ○ | ○ | △ | ◎ |
Note : ◎ Excellent (우수) / ○ : Good (양호) / △ : Possible (가능) / ✕ : Impossible (불가)
