Non-metallic sealing meterials
Flexible Graphite Crinkled Tape
Reliable sealing with flexible graphite technology
팽창 흑연 시트에 접착 처리를 적용하여 테이프 형태로
가공한 제품으로, 우수한 내열성과 내화학성을 바탕으로
다양한 산업 환경에서 안정적인 밀봉 성능을 제공

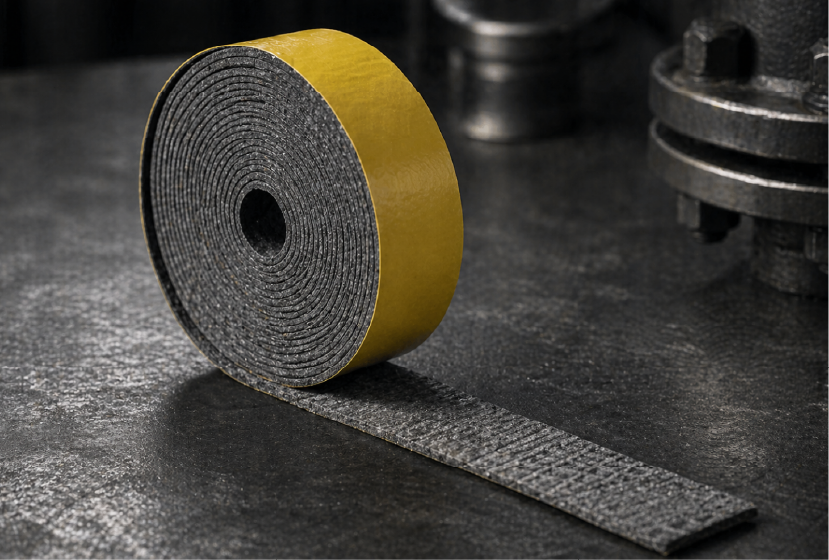

Flexible Graphite Crinkled Tape
유연 흑연 크링클 테이프
팽창 흑연 시트의 한쪽 면에 접착 처리를 적용하여 테이프 형태로 가공한 제품으로,
일반형(Plain)과 크링클형(Crinkled) 두 가지 타입으로 제공됩니다.
One side of the expanded graphite sheet is treated with adhesive and
processed into tape form. Both plain and crinkled types are available
depending on the application.
Application
적용 분야
금속 가스켓 및 플랜지의 표면 보호 및 밀봉용으로 주로 사용되며,
사용 온도 및 pH 범위는 흑연 가스켓과 동일한 수준을 유지합니다.

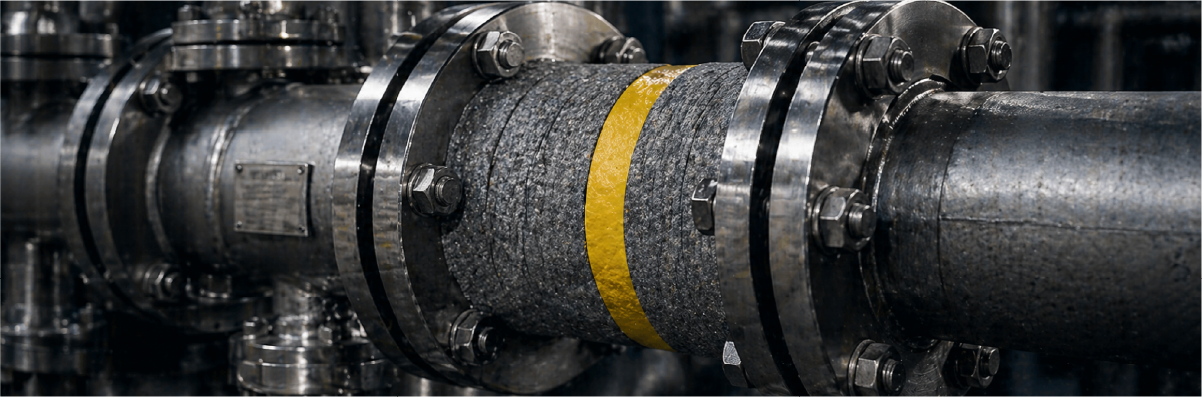

Primarily used as a surface covering for metal gaskets and flanges.
Service temperature and pH range are equivalent to those of graphite gaskets.
| Temp. | -200°C-450°C (Non-Oxidizing Atmosphere) 650°C (in steam service) |
| pH range | 0~14 |
* Other sizes can be available, if required.
Size
치수
| Thickness (mm) | Width (mm) | Length (M) |
|---|---|---|
| 0.4 (0.38) | 6.4 | 15 |
| 0.4 (0.38) | 12.7 | 15 |
| 0.4 (0.38) | 19.1 | 15 |
| 0.4 (0.38) | 25.4 | 15 |
Note
주의 사항
운반 및 설치 시 제품 손상을 방지하기 위해 주의하여 취급하시기 바랍니다. 강산 환경에서는
사용을 권장하지 않으며, 고온 산소 라인에서는 사용에 적합하지 않습니다.
Handle with care during transportation and installation to prevent damage.
Not recommended for use in strong acidic environments.
Not suitable for high-temperature oxygen service.
