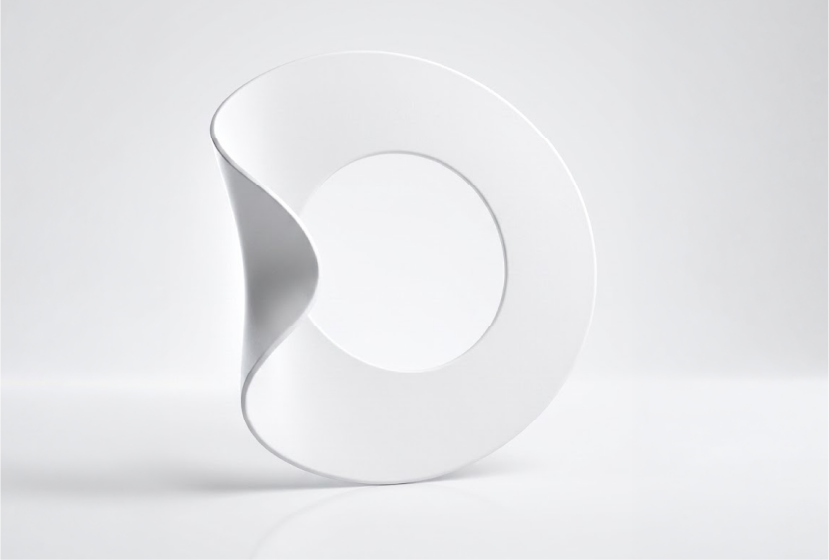

PTFE Expanded Sheet Gasket
Flexible PTFE Expanded Sheet Gasket for Reliable Industrial Sealing
산업용 설비에 적용되는 PTFE 팽창 시트 가스켓으로,
우수한 밀봉 성능과 뛰어난 내화학성 및 안정적인 내구성을 제공
PTFE Expanded Sheet Gasket
PTFE 팽창 시트 가스켓
이 시트 가스켓은 다방향 강도를 갖는 100% 팽창 PTFE로 제작되었습니다.
크리프(creep) 및 콜드 플로우(cold flow) 문제를 해결하기 위해 개발되었습니다.
우수한 내화학성을 가지며, 사용 및 가공(절단) 공정에서 뛰어난 성능을 제공합니다.
This Sheet Gasket is made from 100% expanded PTFE with multidirectional
strength. Developed to come up with the problems of creep and cold flow.
Excellent in chemical resistance and in the use and cut gasketing process.
Application
적용 분야
| Maximum Service Temp. | 260°C |
| Maximum Service Pressure | 20 kgf/cm² |
| Applied Fluids | Alkaline metallic organic chemical compounds, chemicals or solvents except fluorine under |
| high temperature and high pressure, oil gas, foods and medicines to avoid fluid contamination. |
Size
치수
| Thickness (mm) | 0.5 ~ 9.0 |
| Sheets(mm) | 1000 x 1000, 1500 x 1500 |
* Other sizes can be available, if required.
Typical Physical Properties
대표 물성치
| Test Method | Description | Value |
|---|---|---|
| JIS K 7137 | Density (g/cm) | 0.65 |
| ASTM F215 | Tensile strength. MPa (kgf/mm) | 47.56 (13.7) |
| ASTM F36 | Compressibility (%) | 66 |
| ASTM F36 | Recovery (%) | 7 |
| ASTM S37B | Sealability Nitrogen (ml/hr) | 0.17 |
| ASTM F38 | Creep relaxation (%) | 37.1 |
* All data are typical values
Design Data
설계 데이터
| Material | Thickness (mm) | Gasket Factor (m) | Min. Design Seating Stress (y) kgf/cm² (psi) |
|---|---|---|---|
| PTFE | 1.0 | 3.5 | 250 (3556) |
| 1.5 | 3.2 | 230 (3271) | |
| 2.0 | 3.0 | 200 (2845) | |
| 3.0 | 2.5 | 200 (2845) |
