Non-metallic sealing meterials
PTFE Reinforced Gasket
Enhanced PTFE Gasket for Improved Sealing Stability
카본, 글라스 등의 충전재를 적용한
강화형 PTFE 가스켓으로 하중 및 압력
조건에서도 안정적인 밀봉 성능을 제공

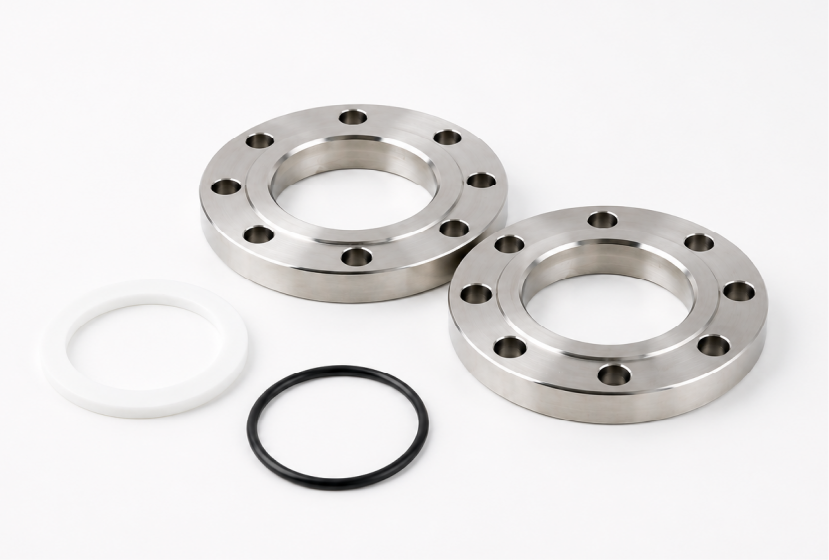

PTFE Reinforced Gasket
PTFE 보강 가스켓
본 제품은 카본, 글라스 등의 충전재를 적용하여 강화된 PTFE 가스켓으로,
PTFE의 단점인 콜드 플로우(Cold Flow) 현상을 개선하여
하중 조건에서도 안정적인 밀봉 성능과 치수 안정성을 제공합니다.
This is very special PTFE Gasket that is reinforced with some filler materials
such as Carbon or Glass, etc. to improve Cold - Flow Phenomenon as the
week point of PTFE Gasket.
Application
적용 분야
| Maximum Service Temp. | 200°C |
| Maximum Service Pressure | 40 kgf/cm² |
| Applied Fluids | Alkaline metallic organic chemical compounds, chemicals or solvents except fluorine under |
| high temperature and high pressure, oil gas, foods and medicines to avoid fluid contamination. |
Size
치수
| Thickness (mm) | 1.0 ~ 3.0 |
| Sheets(mm) | 1000 x 1000, 1270 x 1270 |
* Other sizes can be available, if required.
Typical Physical Properties
대표 물성치
| Test Method | Description | Value |
|---|---|---|
| Density (g/cm) | 2.28 | |
| JIS K 7137 | Tensile strength. MPa (kgf/mm) | 14.7 (1.5) |
| Elongation [%] | 330 |
* All data are typical values
Design Data
설계 데이터
| Material | Thickness (mm) | Gasket Factor (m) | Min. Design Seating Stress (y) kgf/cm² (psi) |
|---|---|---|---|
| PTFE | 1.0 | 3.5 | 250 (3556) |
| 1.5 | 3.2 | 230 (3271) | |
| 2.0 | 3.0 | 200 (2845) | |
| 3.0 | 2.5 | 200 (2845) |
