Non-metallic sealing meterials
PTFE SOLID GASKET
Reliable sealing with excellent chemical resistance
PTFE 시트를 절단 가공하여 제작된
솔리드 가스켓으로, 우수한 내화학성과
비점착성을 바탕으로 다양한 산업 환경에서
안정적인 밀봉 성능을 제공

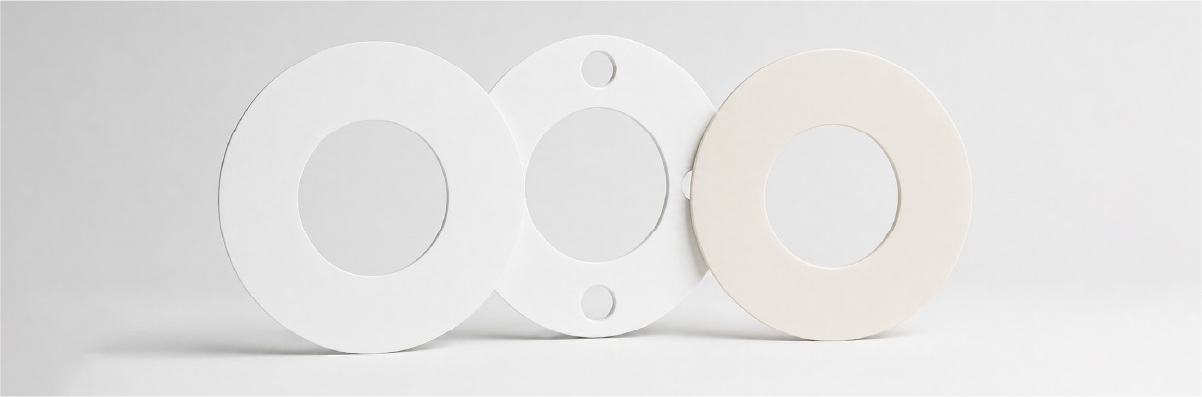

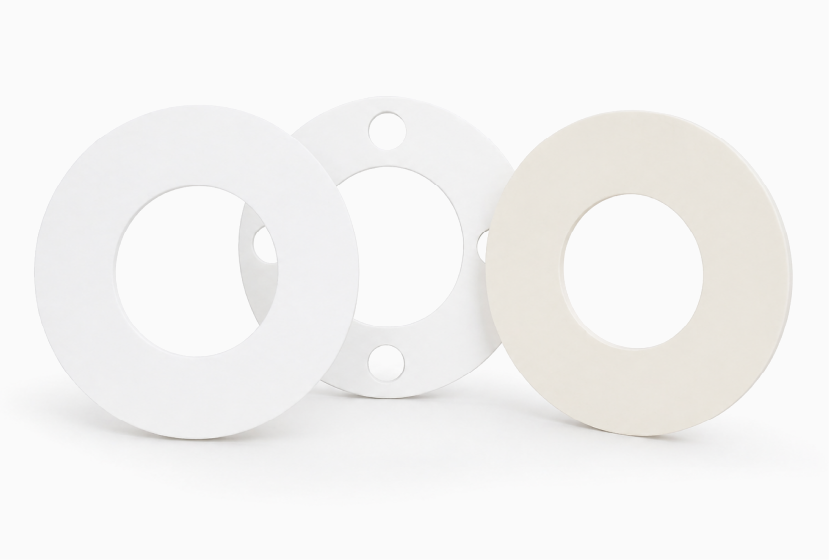

PTFE Solid Gasket
PTFE 솔리드 가스켓
PTFE 솔리드 가스켓은 시트를 절단하여 제작되며,
우수한 내화학성을 바탕으로 다양한 산업 환경에서 사용이 가능합니다.
또한, 카본, 글라스 등 다양한 충전재를 적용하여 성능을 향상시킬 수 있습니다.
PTFE Solid Gasket is manufactured by cutting from solid sheets.
It offers excellent chemical resistance and can be used across a wide
range of service applications. Various filler materials such as carbon,
glass, and others can be incorporated to enhance performance.
Application
적용 분야
| Maximum Service Temp. | 100°C |
| Maximum Service Pressure | 10 kgf/cm² |
| Applied Fluids | Alkaline metallic organic chemical compounds, chemicals or solvents except fluorine under |
| high temperature and high pressure, oil gas, foods and medicines to avoid fluid contamination. |
Size
치수
| Thickness (mm) | 0.5 ~ 0.3 |
| Sheets(mm) | 1000 x 1000, 1500 x 1500 |
* Other sizes can be available, if required.
Typical Physical Properties
대표 물성치
| Test Method | Description | Value |
|---|---|---|
| Density (g/cm) | 2.15 | |
| JIS K 7137 | Tensile strength. MPa (kgf/mm) | 23.2(2.37) |
| Elongation [%] | 310 |
* All data are typical values
Design Data
설계 데이터
| Material | Thickness (mm) | Gasket Factor (m) | Min. Design Seating Stress (y) kgf/cm² (psi) | Flange Surface |
|---|---|---|---|---|
| PTFE | 1.5 | 3.5 | 230 (3271) | 12.5~25S |
| 3.0 | 2t.5 | 200 (2845) | 12.5~25S |
* Pure PTFE Gasket can be applied to L.M&F flange, L.T&G flange
