Non-metallic sealing meterials
non-asbestos sheet & gasket
Industrial Sealing Solution
비석면 소재로 제작된 시드 및 기스켓으로,
우수한 내열성과 내화학성을 바탕으로 다양한
산업환경에서 안정적인 밀봉 성능을 제공

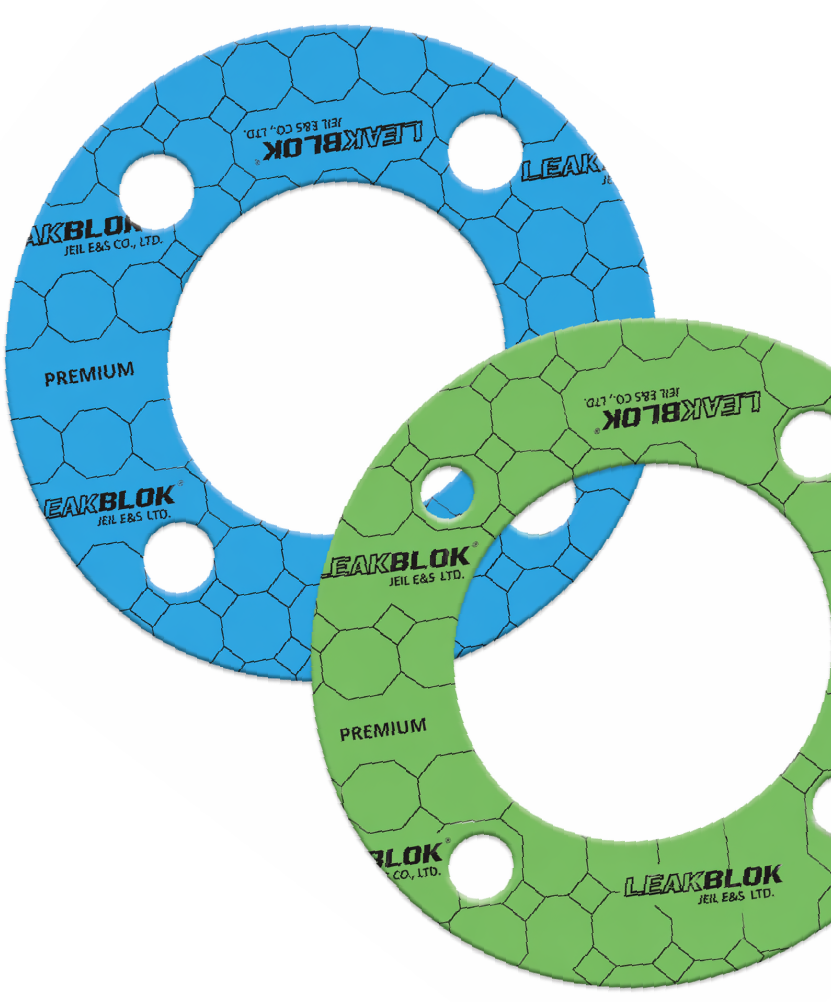

혁신적인 기술로 개발된 LEAKBLOK®는 친환경 무용제 공정을 통해 생산된 제품입니다.
우수한 밀봉 성능, 높은 내구성, 그리고 뛰어난 유연성을 갖추어 기존 NA 시트 및 가스켓과
차별화됩니다. 유체 오염을 방지하며, 스팀 및 클린 라인 환경에 적합합니다.
JIC 6000 is manufactured by the hot calender process using high-quality
non-asbestos fiber (Aramid Fiber) and oil-resistant synthetic rubber (NBR).
This sheet provides excellent sealing performance along with superior oil resistance.
| Color | Blue(Black Printed) |
|---|---|
| Binder | NBR |

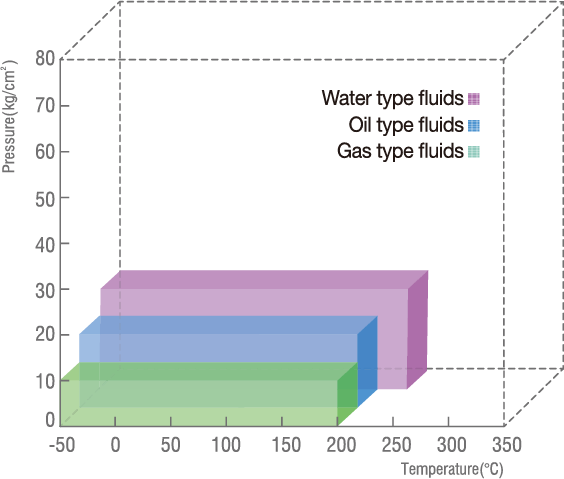

| Service Temperature |
Peak. Temperature: 660°F(350°C) Continuous operating Temperature: 428°F(220°C) |
| Peak Pressure | Max. 2.94MPa (30kg/cm] |
| pH | 4-11 Above is general range and has no guarantee pH for every case. Please contact us for further details. |
| Applied Fluids | Suitable for Water, Hot Oil, Oil Gas Alkali, Salt Solutions, Solvents, Etc., Strong Acid and Alkali, Soluble Chemicals |
| Approvals : WRAS, TA Luft, ABS | |
| Thickness (mm) | 0.8 ~ 3.2 |
|---|---|
| Sheets(mm) | 1500 x 1500 , 1270 x 1270 |
| Test Method | Blue(Black Printed) | LEAKBLOK® | N.A Sheet |
|---|---|---|---|
| ASTM D792 | Density(g/cm3) | 1.9 | 1.7 |
| ASTM F152 | Tensile strength Across grain MPa[kg/cm2] |
16.0 (163) |
12.0 (122) |
| ASTM F36J | Compressibility[%] | 10 | 9 |
| ASTM F36J | Recovery[%] | 59 | 55 |
| ASTM F146 | Fluid Resistance after 5hrs immersions ASTM IRM903 Oil(150°C) Thickness Increase[%] Tensile Loss[%] ASTM Fuel B(20-30°C) Thickness Increase[%] Weight Increase[%] |
ㅤ ㅤ ㅤ 4 20 ㅤ 4 7 |
ㅤ ㅤ ㅤ 5 23 ㅤ 5 9 |
| ASTM F495 | Ignition Loss[%] | 29 | 29 |
| DIN 3535 | Gas Permeability[ml/min] | 0.01 | 0.25 |
- 상기 물성치는 실측값이며, 전체 물성을 대표하지는 않음
ㅤVDI 2440 Leak Late : 2 x10 mbar.1/(s.m)
| Thickness (mm) |
Gasket Factor (m) |
Min. Design Seating Stress (y) |
|---|---|---|
| 0.8 | 3.5 | 6500 (457) |
| 1.6 | 2.75 | 3700 (260) |
| 3.2 | 2.0 | 1600 (112) |
- Please observe install guidance for even seating stress.
- At same bolt torque, Flat Ring type of gasket recommended for high seating stress and thickness shall be 1.5(T)mm.
- Re-Torque temperature should be performed at normal and pressure.
- For Steam Line, contact our technical Team right recommendation.
